Industrial Plug Socket Pins

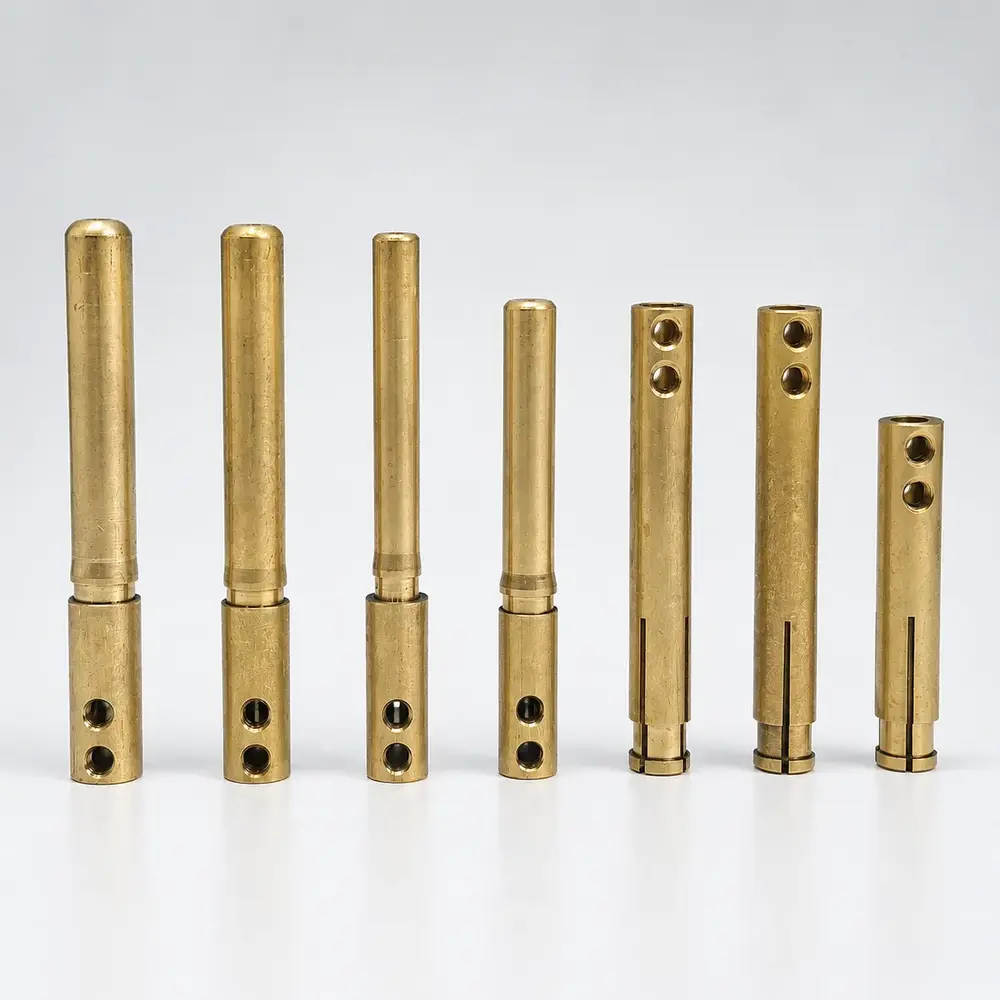

Industrial Plug Socket Pins from dipak sales are precision electrical contact components developed for industrial plug, socket and connector assemblies.
Contact geometry, dimensions, material, mating features and surface finish can be manufactured around customer drawings, samples and defined technical requirements.
Industrial Plug Socket Pins for Electrical Connection Systems
Industrial Plug Socket Pins form the contact interface inside plug and socket assemblies. Their dimensions are directly related to the mating component, so contact geometry, insertion fit and the surrounding housing need to be considered together. dipak sales manufactures precision metal components for electrical and industrial applications and can develop plug or socket pins from customer drawings and specifications.
Think About the Mating Pair First
A contact pin cannot be specified in isolation when it is part of a plug-and-socket system. The mating contact, housing, insertion arrangement and fixing method influence the final component design. For an OEM requirement, the drawing or sample therefore becomes the most useful starting point.
Important design inputs
- Contact pin or socket configuration
- Mating dimensions and contact geometry
- Overall length and critical diameters
- Mounting, crimping or fixing features where applicable
- Material and applicable material standard
- Plating or surface treatment requirement
Plug Pins and Socket Contacts Are Not Always the Same Part
| Component type | Design focus |
|---|---|
| Industrial plug pin | Contact geometry, mating fit and mechanical interface with the socket. |
| Industrial socket contact | Receiving geometry and the intended mating relationship with the plug pin. |
| Custom contact component | Dimensions, profile, mounting features and finish defined by the equipment design. |
Material and Surface Finish
Industrial contact components may require a material and finish selected for the electrical and mechanical requirements of the finished assembly. dipak sales has material expertise covering ETP Copper, Aluminum, lead-free brass alloys, low-lead brass alloys and copper alloys. The exact material for a plug or socket pin should be established from the customer requirement approved specification.
Where the design calls for a plated or otherwise treated surface, the finish can also be incorporated into the component requirement. dipak sales lists plating, coating, part finishing and other finishing processes among its capabilities.
Precision Matters at the Contact Interface
Unlike a general-purpose metal part, a plug or socket contact has a functional interface that has to mate with another component. Small dimensional differences can therefore affect assembly fit. For this reason, critical diameters, lengths, contact features and other mating dimensions should be identified on the drawing and included in the inspection plan.
dipak sales supports precision manufacturing processes including turning, drilling, milling, tapping and other component operations. The appropriate route depends on the geometry of the contact pin and the required production quantity.
Industrial Applications
Depending on the design, industrial plug and socket pins can form part of electrical connectors, industrial plug assemblies, equipment connection systems and OEM electrical products. Specialist manufacturers also supply industrial male and female contact pins in different configurations and develop dimensions according to technical drawings or customer requirements.
The actual electrical rating, mating standard and service conditions should come from the finished connector design. dipak sales does not assign a universal rating to a custom pin without the relevant technical specification.
Manufacturing Around the Contact Geometry
A contact pin may be simple in appearance while still containing several controlled features. Production can be organized around turning or precision machining for the main profile, with drilling, tapping or finishing added where required. This drawing-led approach also makes it easier to maintain a repeatable reference for repeat OEM orders.
Quality and Measurement
dipak sales is certified to ISO 9001:2015 for manufacturing precision metal components. Its documented inspection resources include digital micrometers, vernier calipers, height gauges, depth gauges, dial indicators, bore gauges, thread gauges and other measurement equipment.
For plug and socket pins, inspection can concentrate on mating dimensions, critical diameters, lengths, threads or other features identified by the approved drawing.
What Helps Us Evaluate a Contact Pin
A technical drawing is preferred, but a sample and clear dimensional information can also provide a starting point. Material, mating component information, critical tolerances, finish, quantity and any applicable customer standard should be included where available.
Common Questions
Can industrial plug pins be made to a custom design?
Yes. dipak sales can review plug pin requirements based on a customer drawing, sample or defined technical specification.
Can socket contact pins also be manufactured?
Yes. Socket contact requirements can be reviewed according to the mating geometry and approved component specification.
Can the surface finish be customized?
Yes. Plating or another specified surface treatment can be considered when it forms part of the approved requirement.
